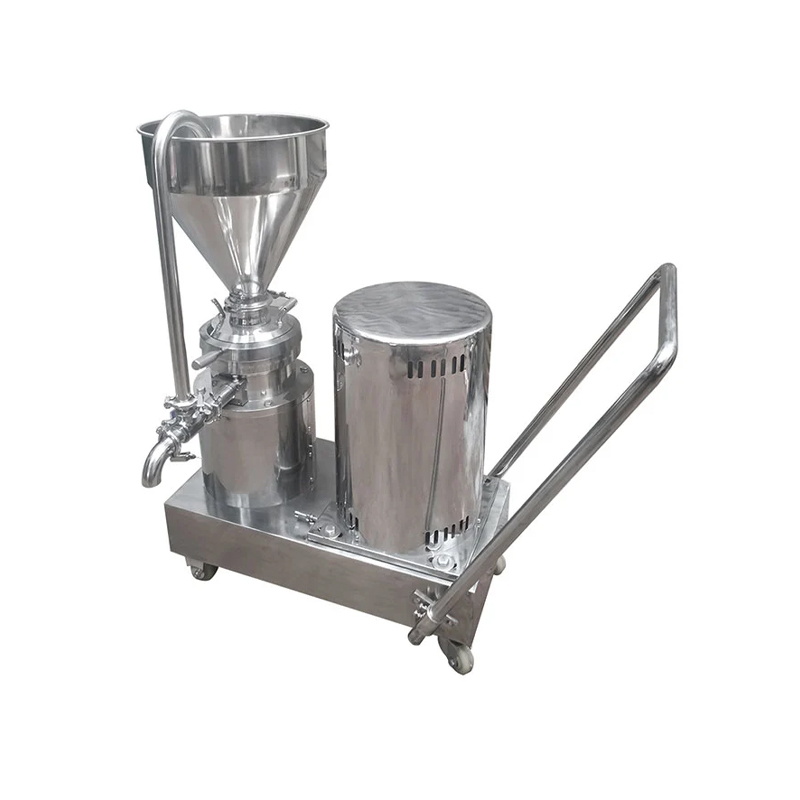

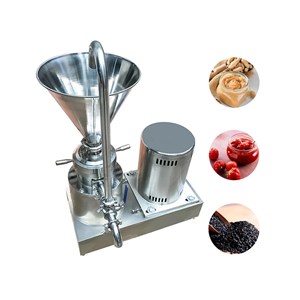

The JMF-series colloid mill is an advanced piece of equipment designed for wet-process ultrafine pulverization, emulsification, homogenization, and mixing; it is widely utilized across industries such as food, pharmaceuticals, chemicals, cosmetics, and coatings. Through the relative motion between a high-speed rotating rotor and a stationary stator, the device generates intense shear, grinding, impact, and cavitation effects. This action refines particles or droplets within the material down to micron—or even sub-micron—levels, thereby creating a stable and homogeneous dispersion system. Building upon the JML-series model, the JMF-series features optimized sealing structures and cooling systems, making it particularly well-suited for continuous production operations and the processing of materials at elevated temperatures.
<ol start="1">
<li>
<p>Ultra-Fine Grinding: Reduces particle size to 1-50 μm, some materials can reach below 0.1 μm.</p>
</li>
<li>
<p>Compact Structure: Vertical/split design, small footprint, easy installation.</p>
</li>
<li>
<p>High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, meeting sanitary standards.</p>
</li>
<li>
<p>Adjustable Gap: Rotor and stator gap adjustable (0.01-2 mm) to meet different fineness requirements.</p>
</li>
<li>
<p>Easy Operation: Simple operation for start-up, gap adjustment, and cleaning, no special training required.</p>
</li>
<li>
<p>Reliable Sealing: Improved double mechanical seal for better sealing performance and longer service life.</p>
</li>
<li>
<p>Enhanced Cooling: Equipped with jacket cooling water circulation system for better cooling effect, suitable for high-temperature materials.</p>
</li>
<li>
<p>Circulation Grinding: Can be equipped with circulation piping for multiple passes to achieve ideal fineness.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Reasonable structural design, easy disassembly and cleaning, low maintenance cost.</p>
</li>
<li>
<p>Multiple Models Available: JMF-50, 80, 100, 120, 140, 180 and other specifications to meet different production requirements.</p>
</li>
<li>
<p>Wide Application Range: Suitable for food, pharmaceutical, cosmetic, chemical and other industries.</p>
</li>
<li>
<p>Suitable for Continuous Production: Improved design, more suitable for continuous large-scale production.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Model</th>
<th>Capacity (kg/h)</th>
<th>Motor Power (kW)</th>
<th>Speed (rpm)</th>
<th>Tip Speed (m/s)</th>
<th>Gap Range (mm)</th>
<th>Dimensions (mm)</th>
<th>Weight (kg)</th>
</tr>
</thead>
<tbody>
<tr>
<td>JMF-50</td>
<td>10-50</td>
<td>1.5</td>
<td>2900</td>
<td>7.6</td>
<td>0.01-2</td>
<td>400×300×750</td>
<td>85</td>
</tr>
<tr>
<td>JMF-80</td>
<td>50-150</td>
<td>3.0</td>
<td>2900</td>
<td>12.1</td>
<td>0.01-2</td>
<td>500×400×850</td>
<td>130</td>
</tr>
<tr>
<td>JMF-100</td>
<td>100-300</td>
<td>5.5</td>
<td>2900</td>
<td>15.2</td>
<td>0.01-2</td>
<td>600×500×950</td>
<td>190</td>
</tr>
<tr>
<td>JMF-120</td>
<td>200-600</td>
<td>7.5</td>
<td>2900</td>
<td>18.2</td>
<td>0.01-2</td>
<td>700×600×1050</td>
<td>270</td>
</tr>
<tr>
<td>JMF-140</td>
<td>300-1000</td>
<td>11.0</td>
<td>2900</td>
<td>21.2</td>
<td>0.01-2</td>
<td>800×700×1150</td>
<td>380</td>
</tr>
<tr>
<td>JMF-180</td>
<td>500-2000</td>
<td>15.0-22.0</td>
<td>2900</td>
<td>27.3</td>
<td>0.01-2</td>
<td>900×800×1250</td>
<td>500</td>
</tr>
</tbody>
</table>
