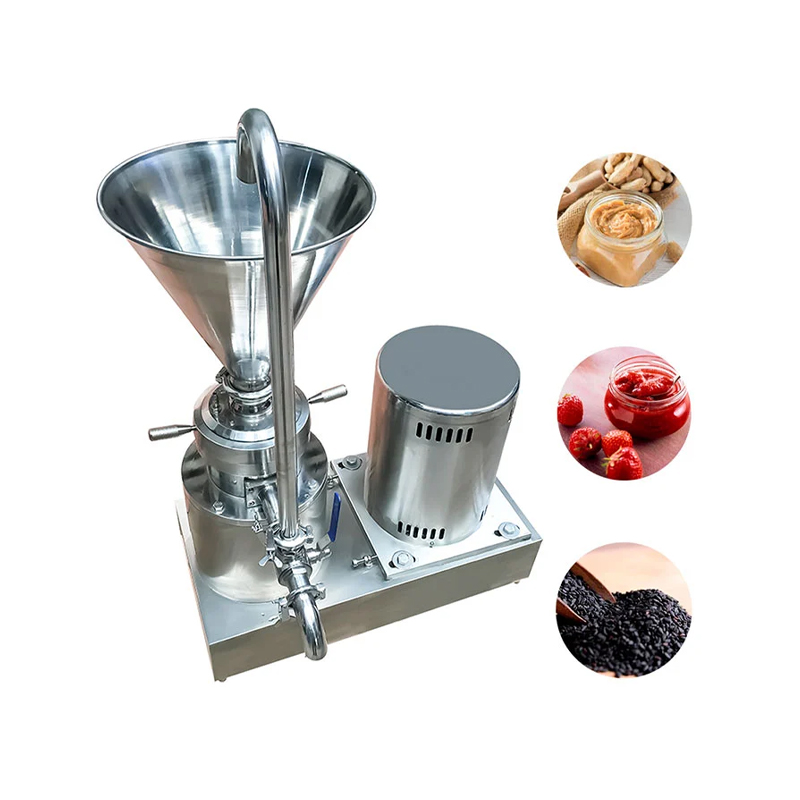

Sanitary Split-Type Colloid Mill
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
The JMF-series colloid mill is an advanced piece of equipment designed for wet-process ultrafine pulverization, emulsification, homogenization, and mixing; it is widely utilized across industries such as food, pharmaceuticals, chemicals, cosmetics, and coatings. Through the relative motion between a high-speed rotating rotor and a stationary stator, the device generates intense shear, grinding, impact, and cavitation effects. This action refines particles or droplets within the material down to micron—or even sub-micron—levels, thereby creating a stable and homogeneous dispersion system. Building upon the JML-series model, the JMF-series features optimized sealing structures and cooling systems, making it particularly well-suited for continuous production operations and the processing of materials at elevated temperatures.
/
-
Ultra-Fine Grinding: Reduces particle size to 1-50 μm, some materials can reach below 0.1 μm.
-
Compact Structure: Vertical/split design, small footprint, easy installation.
-
High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, meeting sanitary standards.
-
Adjustable Gap: Rotor and stator gap adjustable (0.01-2 mm) to meet different fineness requirements.
-
Easy Operation: Simple operation for start-up, gap adjustment, and cleaning, no special training required.
-
Reliable Sealing: Improved double mechanical seal for better sealing performance and longer service life.
-
Enhanced Cooling: Equipped with jacket cooling water circulation system for better cooling effect, suitable for high-temperature materials.
-
Circulation Grinding: Can be equipped with circulation piping for multiple passes to achieve ideal fineness.
-
Simple Installation and Maintenance: Reasonable structural design, easy disassembly and cleaning, low maintenance cost.
-
Multiple Models Available: JMF-50, 80, 100, 120, 140, 180 and other specifications to meet different production requirements.
-
Wide Application Range: Suitable for food, pharmaceutical, cosmetic, chemical and other industries.
-
Suitable for Continuous Production: Improved design, more suitable for continuous large-scale production.
| Model | Capacity (kg/h) | Motor Power (kW) | Speed (rpm) | Tip Speed (m/s) | Gap Range (mm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| JMF-50 | 10-50 | 1.5 | 2900 | 7.6 | 0.01-2 | 400×300×750 | 85 |
| JMF-80 | 50-150 | 3.0 | 2900 | 12.1 | 0.01-2 | 500×400×850 | 130 |
| JMF-100 | 100-300 | 5.5 | 2900 | 15.2 | 0.01-2 | 600×500×950 | 190 |
| JMF-120 | 200-600 | 7.5 | 2900 | 18.2 | 0.01-2 | 700×600×1050 | 270 |
| JMF-140 | 300-1000 | 11.0 | 2900 | 21.2 | 0.01-2 | 800×700×1150 | 380 |
| JMF-180 | 500-2000 | 15.0-22.0 | 2900 | 27.3 | 0.01-2 | 900×800×1250 | 500 |
