Mixing Emulsifying Tank
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL

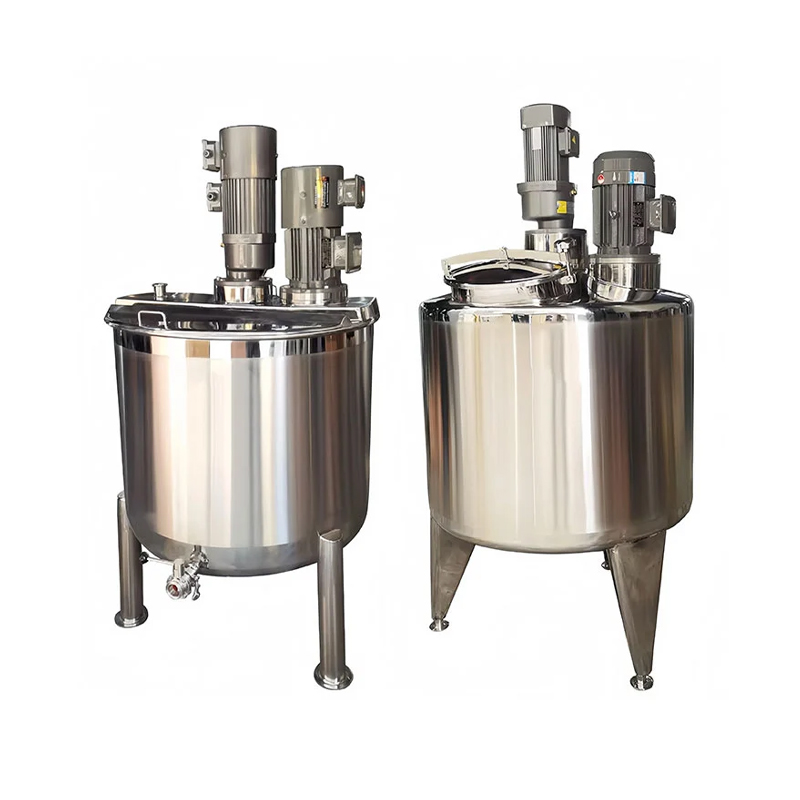

The Emulsifying Tank is a specialized piece of processing equipment designed for the efficient mixing, homogenizing, and emulsifying of liquid, viscous, and powder-based products. It utilizes a high-shear rotor-stator mechanism to reduce droplet or particle size, creating stable emulsions and suspensions that standard agitators cannot achieve.
<p>/</p>
<ol start="1">
<li>
<p>High Efficiency: Unique high-shear rotor-stator structure design ensures rapid particle size reduction to micron level, forming stable emulsions.</p>
</li>
<li>
<p>High-Quality Tank Construction: Made of SUS316L stainless steel, strictly pressure-tested to ensure no leakage and no deformation.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, one-touch setting for emulsifying time, mixing speed, and heating temperature. Automatic operation, no need for dedicated supervision.</p>
</li>
<li>
<p>Top/Side-Mounted Mechanical Seal: Easy maintenance and repair, eliminates leakage risk.</p>
</li>
<li>
<p>High-Temperature Resistant Sealing Materials: High insulation grade, durable, suitable for high-temperature sterilization conditions.</p>
</li>
<li>
<p>Flange Connection Between Heating System and Tank: Removable electric heating tubes or steam jacket connections for easy maintenance and repair.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, small footprint, integrated factory assembly, ready for use after connecting to utilities on site.</p>
</li>
<li>
<p>Vacuum Deaeration Function (Optional): Removes air bubbles from the material to improve finished product surface finish and stability.</p>
</li>
<li>
<p>Built-In CIP Spray Ball: 360-degree no-dead-angle spray cleaning, no disassembly required for tank cleaning.</p>
</li>
<li>
<p>Multiple Safety Protections: Water shortage protection, over-temperature alarm, pressure interlock, and tank lid lock detection to ensure operational safety.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Nominal Volume (L)</th>
<th>Tank Inner Diameter (mm)</th>
<th>Overall Height (mm)</th>
<th>Emulsification Motor Power (kW)</th>
<th>Emulsification Head Speed (r/min)</th>
<th>Working Pressure (MPa)</th>
<th>Working Temperature (°C)</th>
</tr>
</thead>
<tbody>
<tr>
<td>100</td>
<td>550</td>
<td>—</td>
<td>2.2</td>
<td>2800</td>
<td>≤0.09</td>
<td><160</td>
</tr>
<tr>
<td>300</td>
<td>800</td>
<td>—</td>
<td>4</td>
<td>2800</td>
<td>≤0.09</td>
<td><160</td>
</tr>
<tr>
<td>500</td>
<td>900</td>
<td>—</td>
<td>5.5</td>
<td>2800</td>
<td>≤0.09</td>
<td><160</td>
</tr>
<tr>
<td>600</td>
<td>800</td>
<td>2140</td>
<td>7.5</td>
<td>2900/1450</td>
<td>Atmospheric pressure</td>
<td>≤100</td>
</tr>
<tr>
<td>1000</td>
<td>1050–1060</td>
<td>2380–2950</td>
<td>7.5–11</td>
<td>1750–2900</td>
<td>≤0.09</td>
<td>≤160</td>
</tr>
<tr>
<td>1500</td>
<td>1180</td>
<td>2550</td>
<td>15</td>
<td>2900/1450</td>
<td>Atmospheric pressure</td>
<td>≤100</td>
</tr>
<tr>
<td>2000</td>
<td>1340</td>
<td>2760–3400</td>
<td>11–18.5</td>
<td>1750–2900</td>
<td>≤0.09</td>
<td>≤160</td>
</tr>
<tr>
<td>3000</td>
<td>1410–1420</td>
<td>2870–3900</td>
<td>15–22</td>
<td>1400–2900</td>
<td>≤0.09</td>
<td>≤160</td>
</tr>
<tr>
<td>4000</td>
<td>1620</td>
<td>4030</td>
<td>18.5</td>
<td>1750</td>
<td>—</td>
<td>—</td>
</tr>
<tr>
<td>5000</td>
<td>1800–1810</td>
<td>4130</td>
<td>22–37</td>
<td>1400–1750</td>
<td>≤0.09</td>
<td>≤160</td>
</tr>
<tr>
<td>10000</td>
<td>2300</td>
<td>—</td>
<td>55</td>
<td>1400</td>
<td>≤0.09</td>
<td><160</td>
</tr>
<tr>
<td>15000</td>
<td>2600</td>
<td>—</td>
<td>75</td>
<td>1400</td>
<td>≤0.09</td>
<td><160</td>
</tr>
</tbody>
</table>
