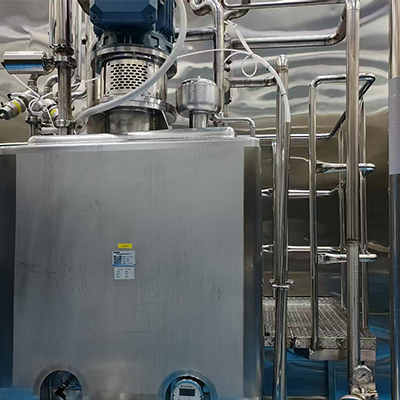

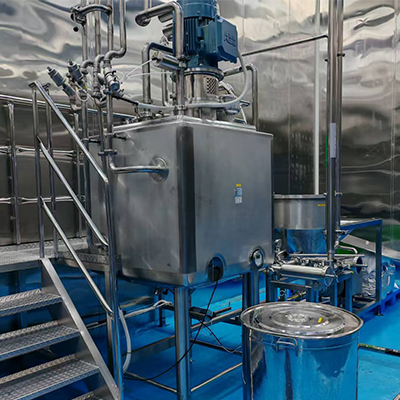

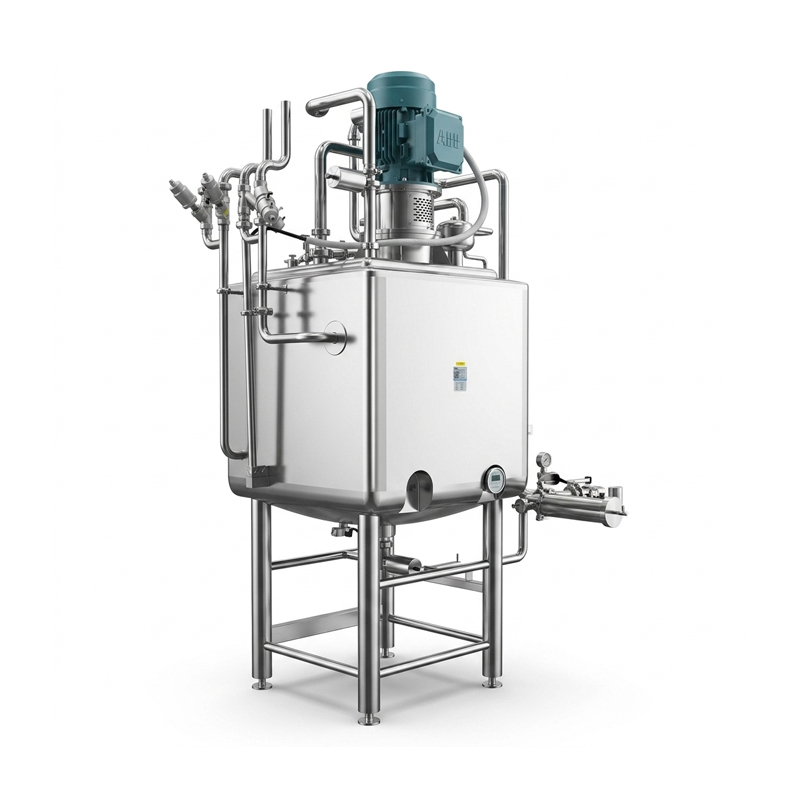

The 1000L Square Sugar Dissolving Tank is specialized equipment designed specifically for the rapid dissolution of sugary materials. It is widely utilized across various industries, including food and beverages, pharmaceuticals, confectionery processing, dairy products, and seasonings. Featuring a square tank design, the unit is equipped with a high-efficiency agitation system and a heating system, enabling the rapid dissolution of various sugars—such as white sugar, rock sugar, glucose, and maltose—into water or other liquid media to form a uniform syrup solution. Compared to cylindrical tanks, the square structure offers superior space efficiency, facilitating the side-by-side arrangement of multiple units and making it ideally suited for the modular layouts of modern manufacturing facilities.
<ol start="1">
<li>
<p>Square Tank Design: Compact structure, space-saving, easy for side-by-side arrangement, suitable for modular production lines.</p>
</li>
<li>
<p>High Dissolving Efficiency: Jacket heating + low-speed agitation combination for fast and uniform sugar dissolving.</p>
</li>
<li>
<p>High-Quality Material Construction: Tank made of SUS304/SUS316L stainless steel, mirror-polished inner surface, meeting sanitary standards.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, one-touch setting for heating temperature, agitation speed, and dissolving time, no need for dedicated supervision.</p>
</li>
<li>
<p>Precise Temperature Control: Equipped with high-precision temperature sensor, temperature control accuracy up to ±1°C.</p>
</li>
<li>

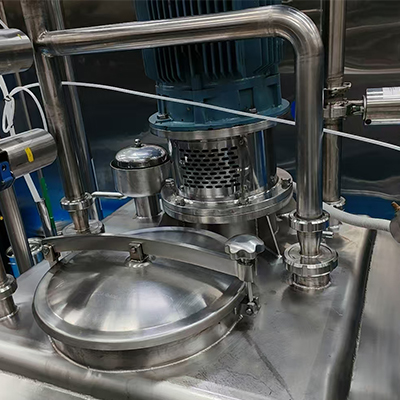

<p>Agitation System: Anchor or paddle agitator with low-speed stable operation, prevents syrup splashing, ensures uniform dissolving.</p>
</li>
<li>
<p>Insulation Layer Design: Outer layer covered with polyurethane or rock wool insulation, reduces heat loss, saves energy.</p>
</li>
<li>
<p>Filtration System: Equipped with in-line filter, effectively removes impurities from syrup, ensures product quality.</p>
</li>
<li>
<p>Easy CIP Cleaning: Mirror-polished inner surface with dead-angle-free design, optional CIP spray ball available.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, integrated factory assembly, ready for use after connecting to utilities on site.</p>
</li>
<li>
<p>Multiple Safety Protections: Over-temperature protection, water shortage protection, overload protection, and safety valve ensure operational safety.</p>
</li>
<li>
<p>Large Capacity Design: 1000L working volume, meets medium-scale production requirements.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Parameter</th>
<th>Specification</th>
</tr>
</thead>
<tbody>
<tr>
<td>Working Volume</td>
<td>1000L</td>
</tr>
<tr>
<td>Tank Shape</td>
<td>Square (Vertical)</td>
</tr>
<tr>
<td>Tank Material</td>
<td>Inner shell: SUS304 / SUS316L; Jacket: SUS304; Outer shell: SUS304</td>
</tr>
<tr>
<td>Internal Surface Finish</td>
<td>Mirror polish (Ra ≤ 0.4μm)</td>
</tr>
<tr>
<td>External Surface Finish</td>
<td>Matte brushed</td>
</tr>
<tr>
<td>Insulation Layer</td>
<td>Polyurethane / Rock wool, thickness 50-80mm</td>
</tr>
<tr>
<td>Design Pressure (Inner shell)</td>
<td>Atmospheric</td>
</tr>
<tr>
<td>Design Pressure (Jacket)</td>
<td>0.3-0.6MPa (steam heating) / Atmospheric (electric heating)</td>
</tr>
<tr>
<td>Working Temperature</td>
<td>Ambient - 100°C (adjustable)</td>
</tr>
<tr>
<td>Temperature Control Accuracy</td>
<td>±1°C</td>
</tr>
</tbody>
</table>
