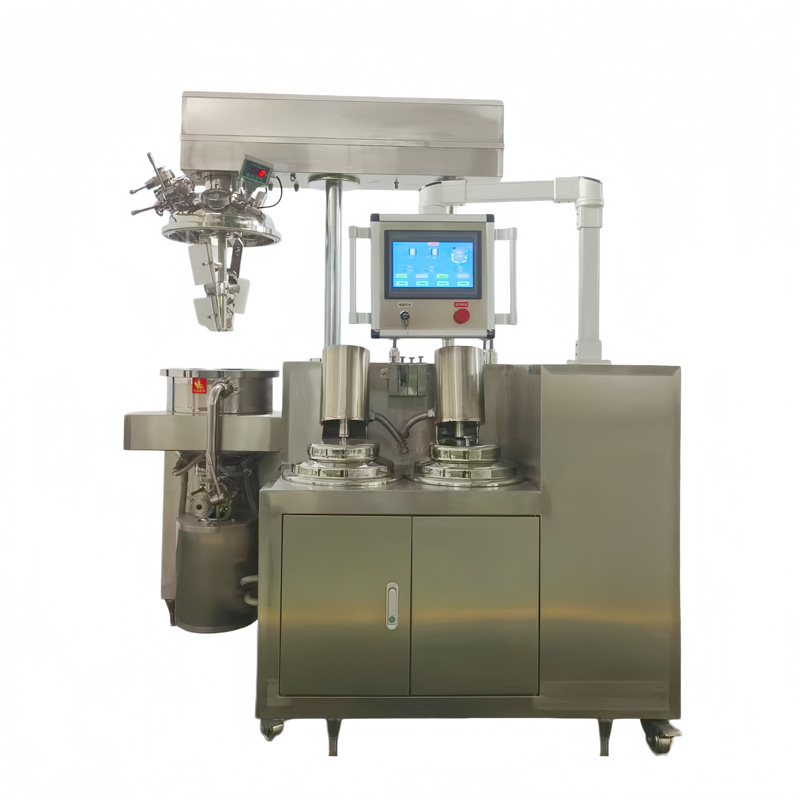

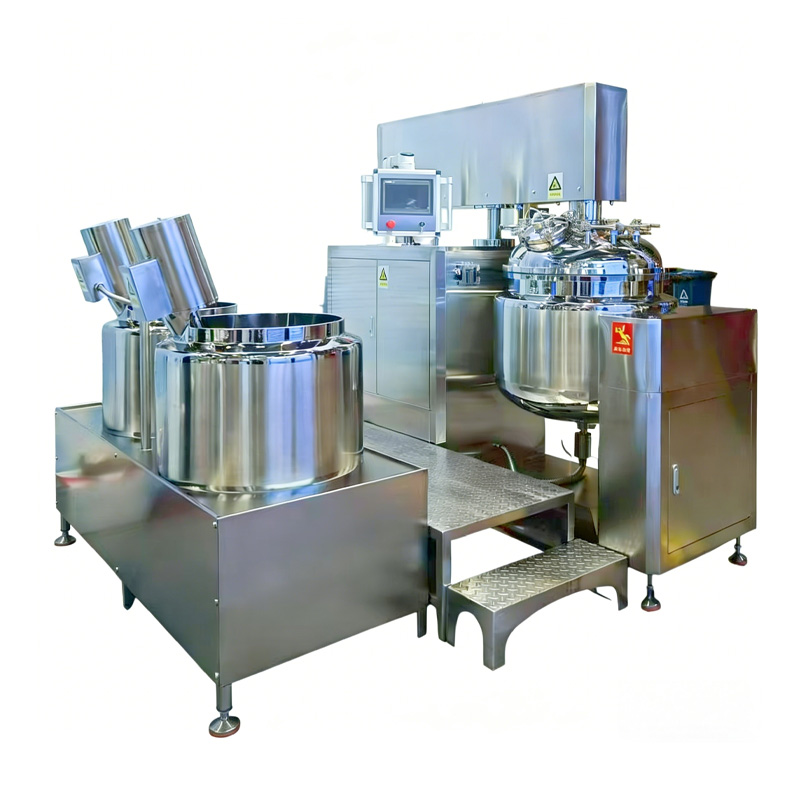

Our company manufactures a diverse range of vacuum emulsification equipment. The homogenization systems available include top, bottom, and internal/external circulation configurations; the stirring systems offer options such as unidirectional, bidirectional, and helical ribbon agitation. Furthermore, the lifting mechanisms are available in single-cylinder and dual-cylinder designs. We are also able to customize various high-quality products tailored precisely to meet specific client requirements. This machine incorporates advanced technologies—including high-efficiency homogenization technology from Spain, CIP cleaning systems, and automated valve controls—which not only distinguish its aesthetic appearance significantly from standard machinery but also vastly enhance its functional efficiency. It represents a new generation of production equipment, serving as an ideal manufacturing solution for facilities adhering to GMP standards.
<div class="ckeditor-html5-video" data-responsive="true" style="text-align: center;">
<video controls="controls" controlslist="nodownload" src="/uploads/2604/15f269d55856a5db6777767d73a587c0.mp4" style="max-width: 100%; height: auto;"> </video>
</div>
<p>♦ The triple-agitation system utilizes an imported frequency converter for speed control, enabling it to meet the diverse production requirements of various processes;</p>
<p>♦ Featuring a homogenization structure based on German technology, the unit employs an imported dual-face mechanical seal for superior performance; the maximum emulsification speed reaches 4200 rpm, achieving a maximum shear fineness of 0.2–5 µm;</p>
<p>♦ Vacuum degassing ensures that the product meets sterile requirements; furthermore, a vacuum suction system is utilized—specifically for powdered materials—to prevent dust dispersion during loading;</p>
<p>♦ The main vessel lid can be equipped with an optional lifting mechanism, facilitating easy and highly effective cleaning; the vessel body can also be configured with a tilting discharge mechanism;</p>
<p>♦ The vessel body is constructed from three layers of welded, imported stainless steel plates; both the tank interior and associated piping feature a mirror-polished finish, fully complying with GMP standards;</p>
<p>♦ Depending on process requirements, the vessel can be configured to heat or cool the materials; the primary heating methods available are steam heating and electric heating;</p>
<p>♦ To ensure the overall stability and reliability of the machine's control system, the electrical components utilize imported configurations, fully meeting international standards.</p>
<table border="1" cellpadding="1" cellspacing="1" style="width: 500px;">
<tbody>
<tr>
<td colspan="1" rowspan="2">Type</td>
<td colspan="1" rowspan="2">Workingcapacity</td>
<td colspan="2" rowspan="1">Homogenizer</td>
<td colspan="2" rowspan="1">Agitator</td>
<td colspan="2" rowspan="1">Vacuum pump</td>
<td colspan="2" rowspan="1">Heating power（KW）</td>
</tr>
<tr>
<td>KW</td>
<td>r/min</td>
<td>KW</td>
<td>r/min</td>
<td>KW</td>
<td>Limit vacuum</td>
<td>Electrical heating</td>
<td>Steam heating</td>
</tr>
<tr>
<td>MSD-E 5L</td>
<td>5L</td>
<td>0.37</td>
<td>0-3600</td>
<td>0.18</td>
<td>0-63</td>
<td>0.18</td>
<td>-0.09</td>
<td>5</td>
<td>2</td>
</tr>
<tr>
<td>MSD-E 10L</td>
<td>10L</td>
<td>0.55</td>
<td>0-3600</td>
<td>0.37</td>
<td>0-63</td>
<td>0.25</td>
<td>-0.09</td>
<td>6</td>
<td>3</td>
</tr>
<tr>
<td>MSD-E 20L</td>
<td>20L</td>
<td>0.75</td>
<td>0-3600</td>
<td>0.55</td>
<td>0-63</td>
<td>0.25</td>
<td>-0.09</td>
<td>9</td>
<td>5</td>
</tr>
<tr>
<td>MSD- E 50L</td>
<td>50L</td>
<td>3</td>
<td>0-3600</td>
<td>0.75</td>
<td>0-63</td>
<td>0.81</td>
<td>-0.09</td>
<td>18</td>
<td>9</td>
</tr>
<tr>
<td>MSD-E 100L</td>
<td>100L</td>
<td>4</td>
<td>0-3600</td>
<td>1.5</td>
<td>0-63</td>
<td>1.5</td>
<td>-0.09</td>
<td>30</td>
<td>12</td>
</tr>
<tr>
<td>MSD-E 200L</td>
<td>200L</td>
<td>5.5</td>
<td>0-3600</td>
<td>2.2</td>
<td>0-63</td>
<td>2.2</td>
<td>-0.09</td>
<td>45</td>
<td>16</td>
</tr>
</tbody>
</table>
<p><img alt="" src="/uploads/2604/fhsifhsifnsi.jpg" /></p>
