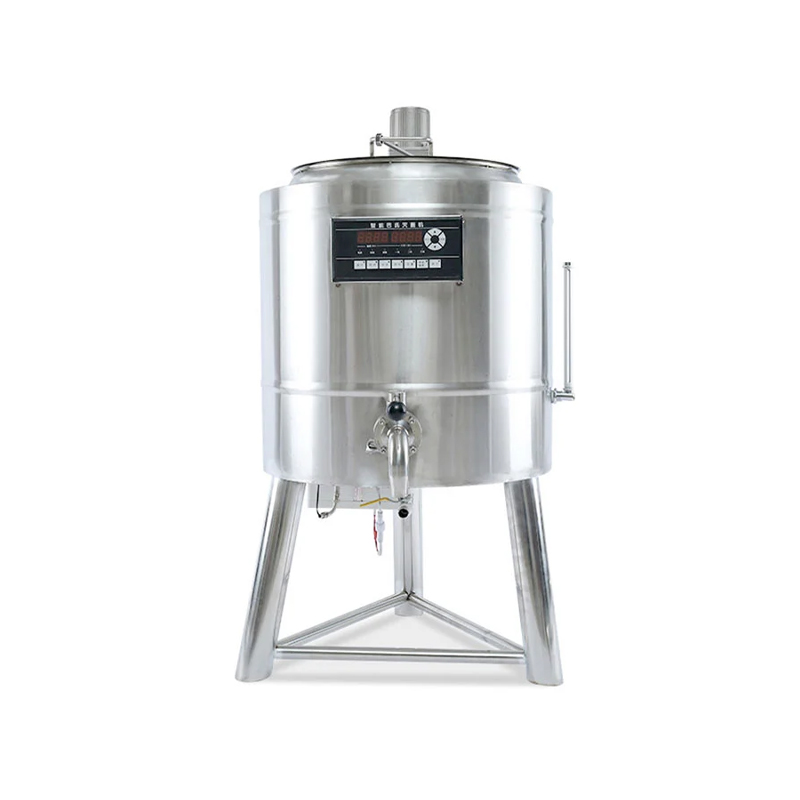

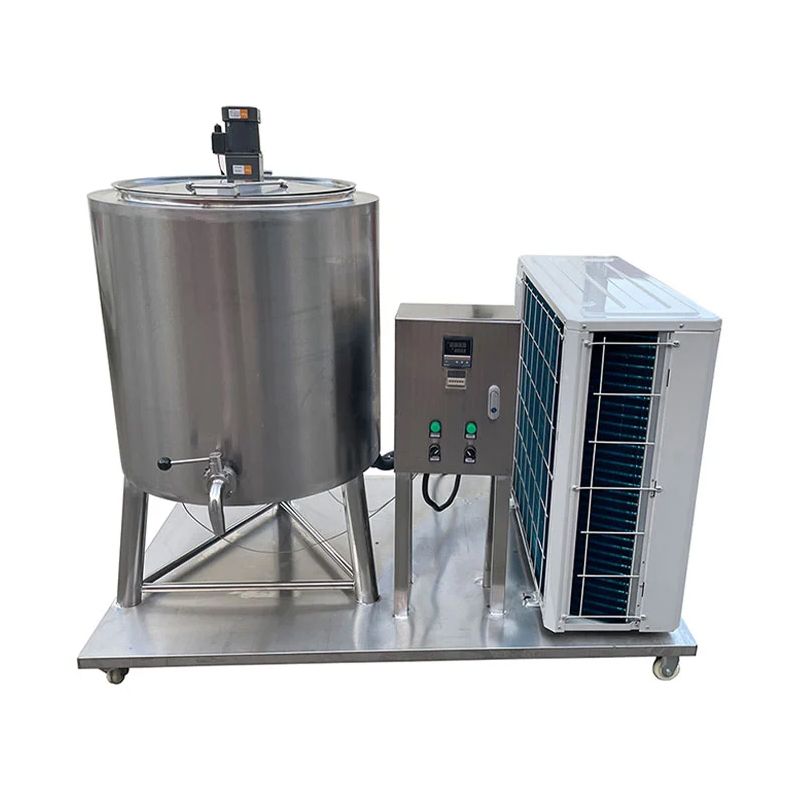

Pasteurization Machine
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
A stainless steel sterilizer is a specialized device designed to sterilize items using saturated steam, superheated water, or dry heat. It is widely utilized across various sectors, including pharmaceuticals, medical devices, bioengineering, food and beverages, cosmetics, and laboratory settings. Constructed from high-quality stainless steel, this equipment employs high-temperature and high-pressure sterilization methods to effectively eliminate microorganisms—such as bacteria, viruses, and spores—thereby ensuring that products comply with established sterility standards and hygiene regulations.
<p>/</p>
<ol start="1">
<li>
<p>High Sterilization Efficiency: High-temperature saturated steam with strong penetration, thorough sterilization, kill rate up to 99.999% or higher.</p>
</li>
<li>
<p>High-Quality Material Construction: Sterilization chamber made of SUS316L stainless steel, corrosion-resistant and high-temperature resistant, meeting GMP standards.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, one-touch recall of sterilization programs, no manual intervention, no need for dedicated supervision.</p>
</li>
<li>
<p>Precise Temperature Control: Equipped with high-precision temperature sensor and pressure sensor, temperature control accuracy up to ±0.5°C.</p>
</li>
<li>
<p>Reliable Door Seal: Silic rubber sealing ring with pneumatic or manual door locking mechanism, excellent sealing performance, no leakage.</p>
</li>
<li>
<p>Multiple Safety Protections: Over-temperature protection, over-pressure protection, safety valve, door lock interlock, and water shortage protection ensure operational safety.</p>
</li>
<li>
<p>Data Recording: Automatically records sterilization temperature, pressure, time and other parameters, supports report printing and data export.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, integrated factory assembly, ready for use after connecting to utilities on site.</p>
</li>
<li>
<p>Easy CIP Cleaning: Mirror-polished inner surface with dead-angle-free design, optional CIP spray ball available.</p>
</li>
<li>
<p>Multiple Models Available: Benchtop, vertical, horizontal, and vacuum pulsating types available to meet different sterilization requirements.</p>
</li>
<li>
<p>Double-Door Design (Optional): Pass-through installation separates clean area from non-clean area, meeting GMP requirements.</p>
</li>
<li>
<p>Vacuum Drying Function (Optional): Automatically dries items after sterilization to prevent secondary contamination.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Volume (L)</th>
<th>Chamber Size (mm)</th>
<th>Working Temp (°C)</th>
<th>Working Pressure (MPa)</th>
<th>Power (kW)</th>
<th>Dimensions (mm)</th>
</tr>
</thead>
<tbody>
<tr>
<td>18</td>
<td>φ250×350</td>
<td>121-134</td>
<td>0.11-0.22</td>
<td>1.5</td>
<td>450×450×700</td>
</tr>
<tr>
<td>24</td>
<td>φ250×450</td>
<td>121-134</td>
<td>0.11-0.22</td>
<td>1.8</td>
<td>480×480×800</td>
</tr>
<tr>
<td>35</td>
<td>φ300×500</td>
<td>121-134</td>
<td>0.11-0.22</td>
<td>2.2</td>
<td>550×550×900</td>
</tr>
<tr>
<td>50</td>
<td>φ340×550</td>
<td>121-134</td>
<td>0.11-0.22</td>
<td>3.0</td>
<td>600×600×1000</td>
</tr>
<tr>
<td>75</td>
<td>φ400×600</td>
<td>121-134</td>
<td>0.11-0.22</td>
<td>4.5</td>
<td>700×700×1100</td>
</tr>
<tr>
<td>100</td>
<td>φ450×650</td>
<td>121-134</td>
<td>0.11-0.22</td>
<td>6.0</td>
<td>800×800×1200</td>
</tr>
</tbody>
</table>
