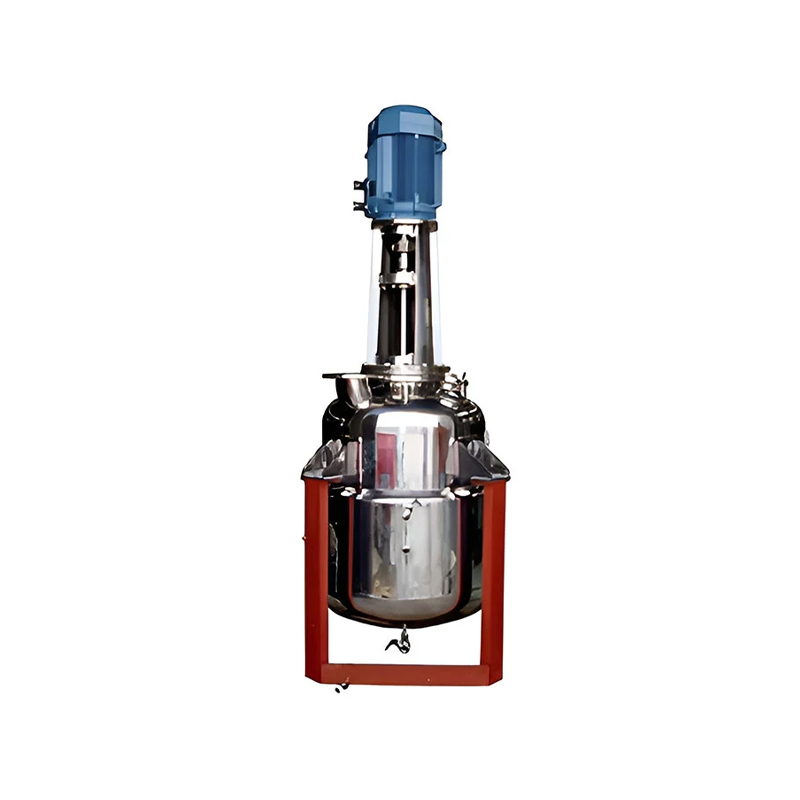

Mixing Reactor
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
The stainless steel reactor is a core piece of reaction equipment widely utilized across various fields, including chemical engineering, pharmaceuticals, food processing, dyes, pesticides, and new energy. It is capable of facilitating a diverse range of process operations—such as mixing, reaction, dissolution, crystallization, and polymerization—under conditions involving high temperatures, high pressures, or vacuum environments. Constructed from high-quality stainless steel, this equipment boasts exceptional corrosion resistance, high-temperature tolerance, and mechanical strength, making it an ideal choice for modern chemical manufacturing.
/
-
High Reaction Efficiency: Optimized agitator system and heat transfer structure ensure uniform mixing and complete reaction.
-
High-Quality Material Construction: Made of SUS304/SUS316L stainless steel, corrosion-resistant and high-temperature resistant, meeting sanitary standards.
-
Easy Operation: Fully automatic PLC control, one-touch setting for temperature, pressure, agitation speed, and reaction time, no need for dedicated supervision.
-
Precise Temperature Control: Jacket or coil heat exchange design with high-precision temperature sensor for real-time monitoring and automatic temperature adjustment.
-
Reliable Sealing: Mechanical seal or magnetic seal eliminates leakage, suitable for flammable, explosive, and toxic materials.
-
Pressure Capable Design: Vessel can withstand positive or negative pressure to meet various reaction requirements.
-
Multiple Agitator Types: Anchor, paddle, turbine, frame, and high-shear agitators available to suit different material characteristics.
-
Easy CIP Cleaning: Mirror-polished inner surface with dead-angle-free design, optional CIP spray ball for easy cleaning.
-
Simple Installation and Maintenance: Compact structure, integrated factory assembly, ready for use after connecting to utilities on site.
-
Multiple Safety Protections: Over-temperature alarm, over-pressure alarm, safety valve, rupture disc, and emergency stop button ensure operational safety.
-
Versatile Configurations: Optional condenser, dosing tank, sampling valve, sight glass, and load cells available.
-
Insulation Layer Design: Optional insulation layer on the outer shell reduces heat loss and saves energy.
| Nominal Volume (L) | Vessel Inner Diameter (mm) | Vessel Height (mm) | Heat Exchange Area (m²) | Agitation Power (kW) |
|---|---|---|---|---|
| 50 | 400 | 500 | 0.6 | 0.55 |
| 100 | 500 | 600 | 0.9 | 0.75 |
| 200 | 600 | 800 | 1.4 | 1.1 |
| 300 | 700 | 900 | 1.8 | 1.5 |
| 500 | 800 | 1100 | 2.5 | 2.2 |
| 800 | 900 | 1300 | 3.4 | 3.0 |
| 1000 | 1000 | 1400 | 4.0 | 4.0 |
| 1500 | 1100 | 1600 | 5.0 | 5.5 |
| 2000 | 1200 | 1800 | 6.3 | 7.5 |
| 2500 | 1300 | 1900 | 7.5 | 7.5 |
| 3000 | 1400 | 2000 | 8.5 | 11.0 |
| 4000 | 1500 | 2200 | 10.0 | 15.0 |
| 5000 | 1600 | 2400 | 12.0 | 18.5 |
| 6300 | 1700 | 2700 | 14.0 | 22.0 |
| 8000 | 1800 | 2900 | 17.0 | 30.0 |
| 10000 | 2000 | 3200 | 21.0 | 37.0 |
| 12500 | 2200 | 3400 | 24.0 | 45.0 |
| 16000 | 2400 | 3700 | 29.0 | 55.0 |
| 20000 | 2600 | 4000 | 35.0 | 75.0 |
