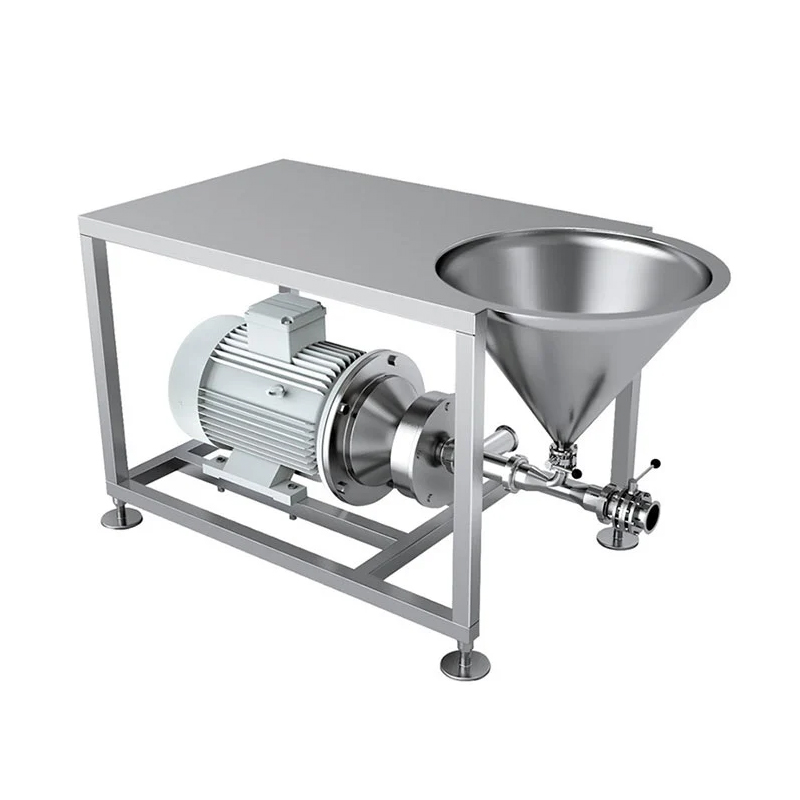

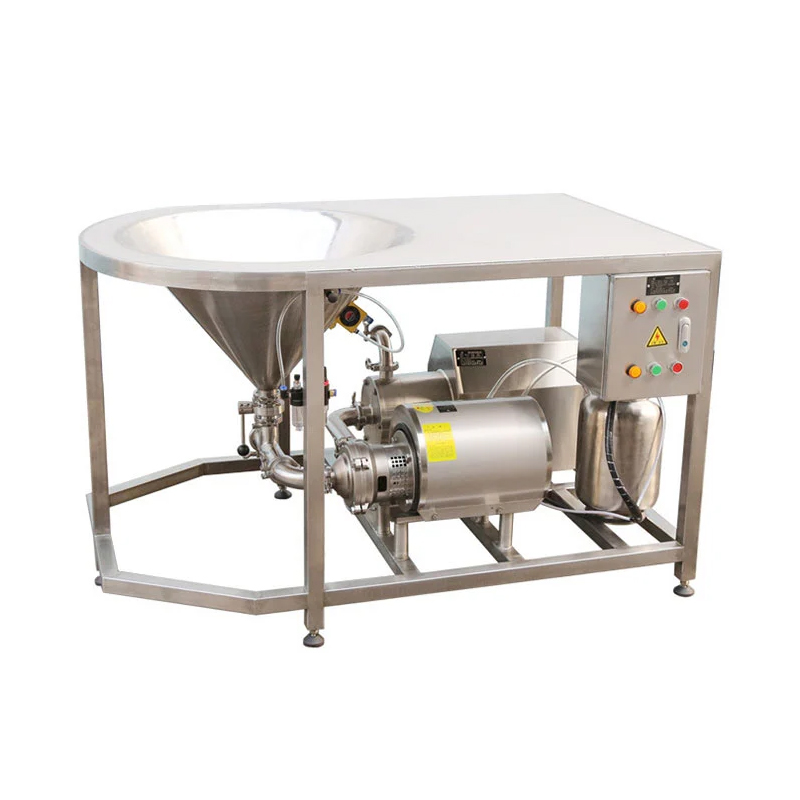

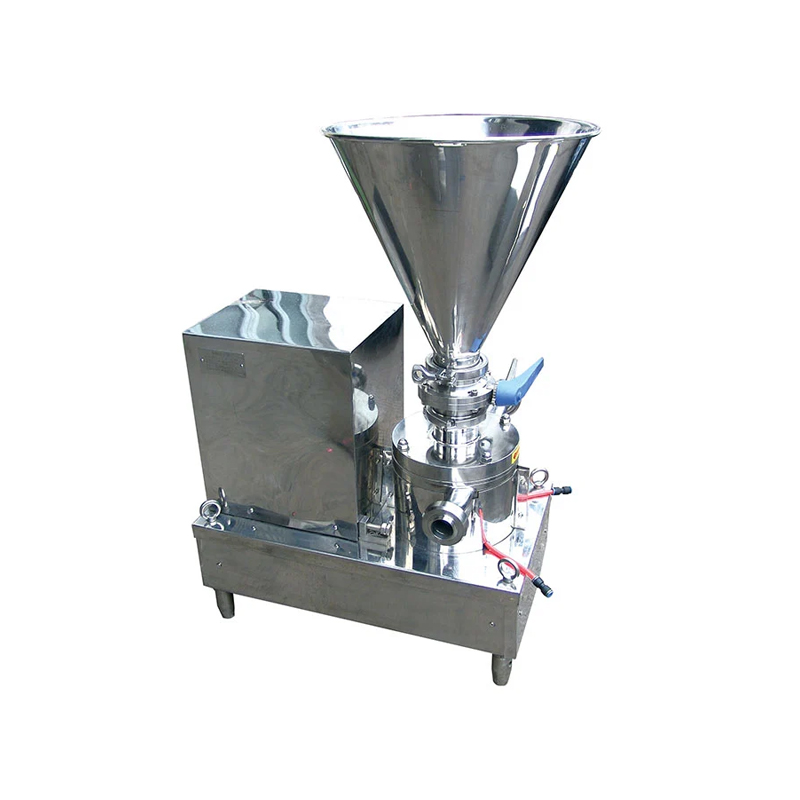

Liquid-Powder Mixer
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
A powder-liquid mixer is a highly efficient mixing device specifically designed to rapidly and uniformly disperse powdered materials into a liquid medium; it is widely utilized across industries such as pharmaceuticals, food, cosmetics, chemicals, and coatings. This equipment effectively resolves common issues associated with traditional powder-liquid mixing processes—such as the formation of "fisheyes" (undispersed powder lumps), agglomeration, and airborne dust—by employing a unique powder-suction and dispersion design. This mechanism enables the instantaneous and thorough blending of powders and liquids, thereby significantly reducing mixing times and enhancing product quality.
<p>/</p>
<ol start="1">
<li>
<p>High Mixing Efficiency: Powder and liquid come into contact and mix instantly, uniform dispersion, no "fisheyes" or lumps.</p>
</li>
<li>
<p>Dust-Free Operation: Powder is drawn in under negative pressure, no dust emission, improves working environment.</p>
</li>
<li>
<p>Shortened Process Time: Traditional mixing takes tens of minutes or even hours, this machine completes in just a few minutes.</p>
</li>
<li>
<p>High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, mirror-polished inner surface, meeting sanitary standards.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, one-touch setting for powder suction speed and mixing time, no need for dedicated supervision.</p>
</li>
<li>
<p>High-Shear Dispersion: Rotor-stator structure generates intense shear force, uniform powder dispersion, fine particle size.</p>
</li>
<li>
<p>Multiple Powder Suction Methods: Single tube, dual tube, or hopper suction methods available.</p>
</li>
<li>
<p>Easy CIP Cleaning: Dead-angle-free design of mixing chamber and piping, optional CIP spray ball available.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, fixed or mobile design available, easy maintenance.</p>
</li>
<li>
<p>Multiple Safety Protections: Motor overload protection, temperature protection, and vacuum protection ensure safe operation.</p>
</li>
<li>
<p>Multiple Models Available: Batch type, in-line type, and mobile type available to meet different production requirements.</p>
</li>
<li>
<p>Wide Application Range: Suitable for pharmaceutical, food, cosmetic, chemical, environmental protection and other industries.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Model</th>
<th>Capacity (L)</th>
<th>Motor Power (kW)</th>
<th>Speed (rpm)</th>
<th>Powder Suction Rate (kg/min)</th>
<th>Workhead Dia. (mm)</th>
<th>Dimensions (mm)</th>
</tr>
</thead>
<tbody>
<tr>
<td>PLM-B-50</td>
<td>30-50</td>
<td>2.2</td>
<td>0-3600</td>
<td>5-10</td>
<td>65</td>
<td>800×600×1400</td>
</tr>
<tr>
<td>PLM-B-100</td>
<td>50-100</td>
<td>4.0</td>
<td>0-3600</td>
<td>8-15</td>
<td>80</td>
<td>900×700×1500</td>
</tr>
<tr>
<td>PLM-B-200</td>
<td>100-200</td>
<td>5.5</td>
<td>0-3600</td>
<td>10-20</td>
<td>100</td>
<td>1000×800×1600</td>
</tr>
<tr>
<td>PLM-B-300</td>
<td>150-300</td>
<td>7.5</td>
<td>0-3000</td>
<td>15-25</td>
<td>120</td>
<td>1100×900×1700</td>
</tr>
<tr>
<td>PLM-B-500</td>
<td>200-500</td>
<td>11.0</td>
<td>0-3000</td>
<td>20-30</td>
<td>140</td>
<td>1200×1000×1800</td>
</tr>
<tr>
<td>PLM-B-800</td>
<td>400-800</td>
<td>15.0</td>
<td>0-3000</td>
<td>25-40</td>
<td>165</td>
<td>1300×1100×2000</td>
</tr>
<tr>
<td>PLM-B-1000</td>
<td>500-1000</td>
<td>18.5</td>
<td>0-3000</td>
<td>30-50</td>
<td>185</td>
<td>1400×1200×2100</td>
</tr>
<tr>
<td>PLM-B-1500</td>
<td>800-1500</td>
<td>22.0</td>
<td>0-3000</td>
<td>35-60</td>
<td>210</td>
<td>1500×1300×2200</td>
</tr>
<tr>
<td>PLM-B-2000</td>
<td>1000-2000</td>
<td>30.0</td>
<td>0-3000</td>
<td>40-70</td>
<td>235</td>
<td>1600×1400×2400</td>
</tr>
<tr>
<td>PLM-B-3000</td>
<td>1500-3000</td>
<td>37.0</td>
<td>0-3000</td>
<td>50-80</td>
<td>265</td>
<td>1800×1600×2600</td>
</tr>
</tbody>
</table>
