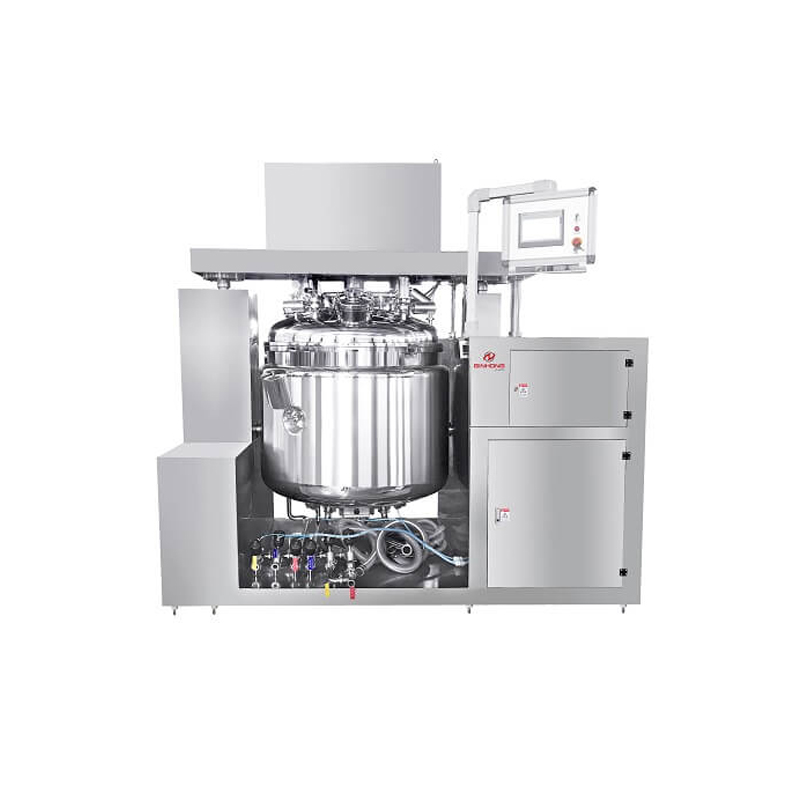

Vacuum Triple Shaft Mixer
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
The Multi-Shaft Mixer is a versatile, high-performance mixing system designed for processing medium-to-high viscosity products, including viscous solutions, dispersions, suspensions, pastes, gels, and emulsions . Equipped with two or three independently driven agitators working in tandem, this mixer delivers a robust combination of high shear agitation and laminar bulk flow across a wide viscosity range—from water-like consistency to several hundred thousand centipoise (cP) .
/
-
High Mixing Efficiency: Dual-shaft or triple-shaft independently driven, high-shear disperser and low-speed anchor agitator work together to quickly process medium-to-high viscosity materials.
-
High-Quality Construction: Shafts and blades made of SUS316L stainless steel, dynamically balanced for smooth and vibration-free operation.
-
Easy Operation: Fully automatic PLC control, independent VFD speed adjustment for each shaft, one-touch recipe recall, no manual intervention required.
-
Scraped Wall System: Anchor agitator equipped with PTFE scrapers continuously wipes the vessel wall and bottom, preventing material buildup and improving heat transfer efficiency.
-
Hydraulic Lift Mechanism: Complete agitator assembly lifts up, allowing the vessel to be rolled out for easy cleaning and batch change. One mixer can serve multiple vessels for higher efficiency.
-
Vacuum/Pressure Optional: Vacuum system available for deaeration; also capable of positive pressure operation to meet different process requirements.
-
Simple Installation and Maintenance: Compact structure, small footprint, integrated factory assembly, ready for use after connecting to utilities on site.
-
Multiple Safety Protections: Lift limit protection, vessel positioning detection, overload alarm, and emergency stop button ensure operational safety.
-
Built-In CIP Spray Ball: 360-degree no-dead-angle spray cleaning, no disassembly required for tank cleaning.
-
Jacketed Temperature Control System: Jacketed vessel with insulation allows steam or cooling water circulation for precise material temperature control.
| Model | Processing Capacity (L) | High-Speed Shaft Power (kW) | High-Speed Shaft Speed (rpm) | Low-Speed Shaft Power (kW) | Low-Speed Shaft Speed (rpm) |
|---|---|---|---|---|---|
| MSD-200L | 200 | 5.5 | 0-1450 | 1.5 | 85 |
| MSD-300L | 300 | 7.5 | 0-1450 | 3 | 61 |
| MSD-500L | 500 | 15 | 0-1450 | 7.5 | 61 |
| MSD-800L | 800 | 30 | 0-1450 | 11 | 52 |
| MSD-1000L | 1000 | 37 | 0-1450 | 18.5 | 52 |
| MSD-2000L | 2000 | 45 | 0-1450 | 22 | 41 |
