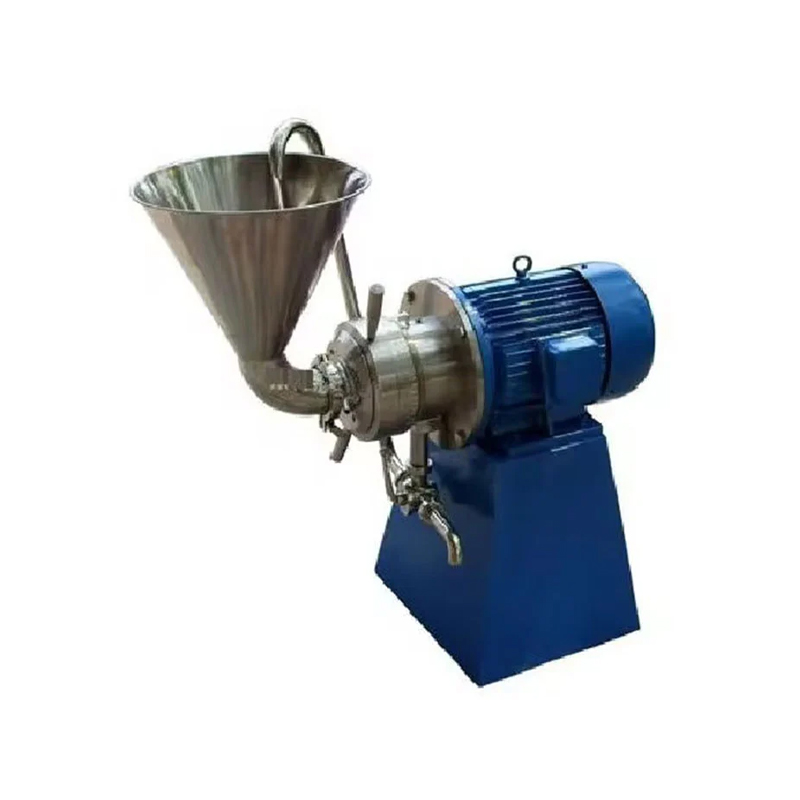

Standard Horizontal Colloid Mill
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
The JMW-series colloid mill is an advanced piece of equipment designed for wet-process ultrafine grinding, emulsification, homogenization, and mixing; it is widely utilized across industries such as food, pharmaceuticals, chemicals, cosmetics, and coatings. Representing a further optimization of the JML and JMF models, this equipment features a split-structure design in which the motor and grinding head are mounted separately. This configuration effectively minimizes vibration and noise, thereby enhancing operational stability. The JMW-series colloid mill is particularly well-suited for the fine processing of high-viscosity, high-hardness, and high-temperature materials, making it an ideal choice for continuous, large-scale production.
<p>/</p>
<ol start="1">
<li>
<p>Ultra-Fine Grinding: Reduces particle size to 1-50 μm, some materials can reach below 0.1 μm.</p>
</li>
<li>
<p>Split Structure: Motor and grinding head separately mounted, low vibration, low noise, stable operation.</p>
</li>
<li>
<p>High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, meeting sanitary standards.</p>
</li>
<li>
<p>Adjustable Gap: Rotor and stator gap adjustable (0.01-2 mm) with precise scale display to meet different fineness requirements.</p>
</li>
<li>
<p>Easy Operation: Simple operation for start-up, gap adjustment, and cleaning, no special training required.</p>
</li>
<li>
<p>Reliable Sealing: Improved double mechanical seal + seal liquid cooling for better sealing performance and longer service life.</p>
</li>
<li>
<p>Enhanced Cooling: Grinding head equipped with jacket cooling water circulation system, effectively controls material temperature to prevent overheating.</p>
</li>
<li>
<p>Circulation Grinding: Can be equipped with circulation piping for multiple passes to achieve ideal fineness.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Split design, easy disassembly and cleaning, low maintenance cost.</p>
</li>
<li>
<p>Multiple Models Available: JMW-80, 100, 120, 140, 180, 200 and other specifications to meet different production requirements.</p>
</li>
<li>
<p>Wide Application Range: Suitable for food, pharmaceutical, cosmetic, chemical and other industries.</p>
</li>
<li>
<p>Suitable for High Viscosity & High Temperature Materials: Applicable viscosity up to 300,000 cP, temperature up to 180°C.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Model</th>
<th>Capacity (kg/h)</th>
<th>Motor Power (kW)</th>
<th>Speed (rpm)</th>
<th>Tip Speed (m/s)</th>
<th>Gap Range (mm)</th>
<th>Dimensions (mm)</th>
<th>Weight (kg)</th>
</tr>
</thead>
<tbody>
<tr>
<td>JMW-80</td>
<td>50-200</td>
<td>3.0</td>
<td>2900</td>
<td>12.1</td>
<td>0.01-2</td>
<td>1200×500×1200</td>
<td>180</td>
</tr>
<tr>
<td>JMW-100</td>
<td>100-400</td>
<td>5.5</td>
<td>2900</td>
<td>15.2</td>
<td>0.01-2</td>
<td>1300×600×1300</td>
<td>260</td>
</tr>
<tr>
<td>JMW-120</td>
<td>200-800</td>
<td>7.5</td>
<td>2900</td>
<td>18.2</td>
<td>0.01-2</td>
<td>1400×700×1400</td>
<td>350</td>
</tr>
<tr>
<td>JMW-140</td>
<td>300-1200</td>
<td>11.0</td>
<td>2900</td>
<td>21.2</td>
<td>0.01-2</td>
<td>1500×800×1500</td>
<td>480</td>
</tr>
<tr>
<td>JMW-180</td>
<td>500-2000</td>
<td>18.5</td>
<td>2900</td>
<td>27.3</td>
<td>0.01-2</td>
<td>1700×900×1600</td>
<td>650</td>
</tr>
<tr>
<td>JMW-200</td>
<td>800-3000</td>
<td>22.0-37.0</td>
<td>2900</td>
<td>30.3</td>
<td>0.01-2</td>
<td>1800×1000×1700</td>
<td>850</td>
</tr>
</tbody>
</table>
