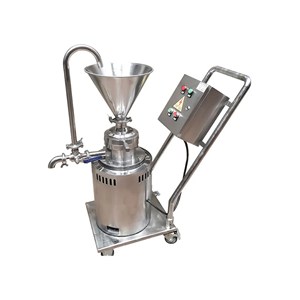

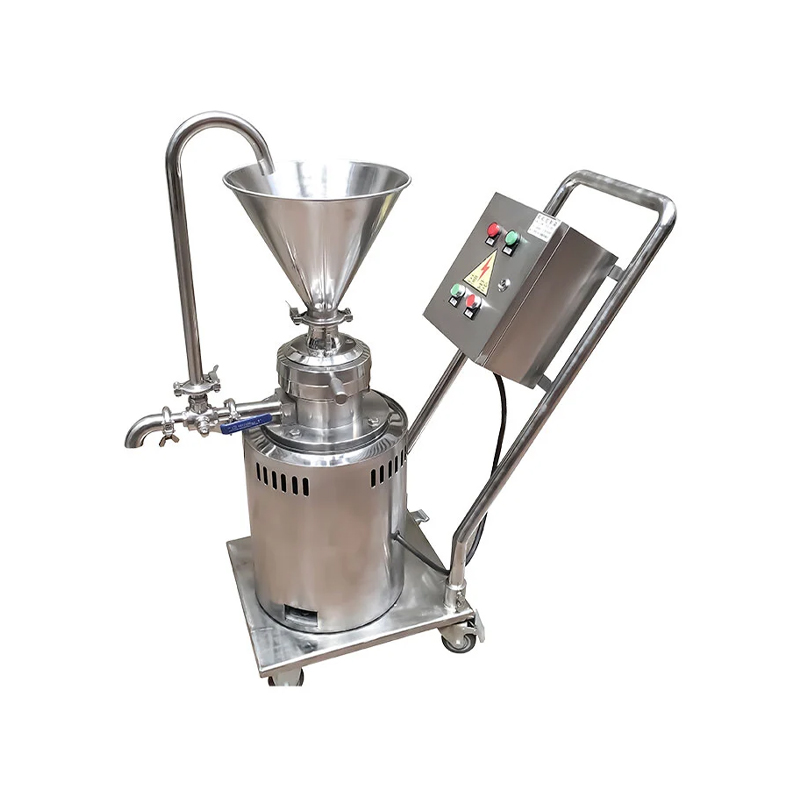

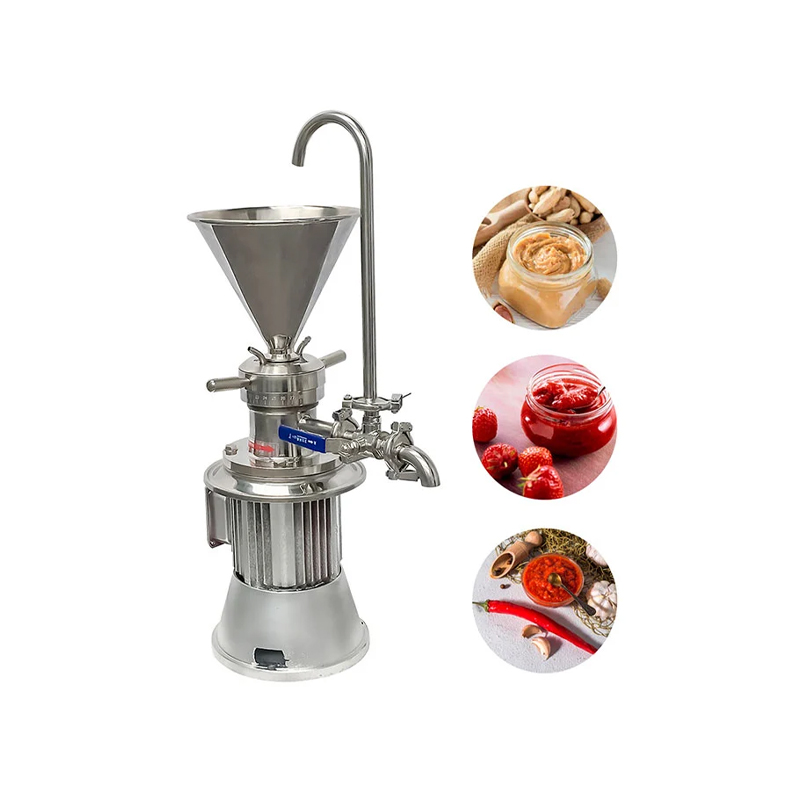

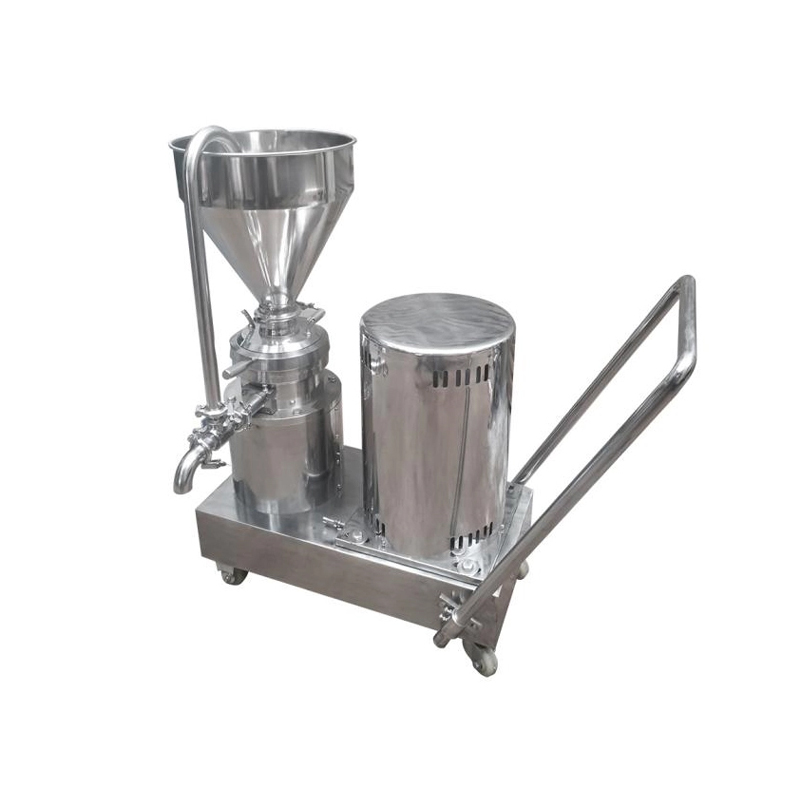

Sanitary Vertical Colloid Mill
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
The JML-series Colloid Mill is an advanced piece of equipment designed for wet ultrafine grinding, emulsification, homogenization, and mixing. It is widely utilized across various industries, including food, pharmaceuticals, chemicals, cosmetics, and coatings. By harnessing the relative motion between a high-speed rotating rotor and a stationary stator, the device generates intense shear, grinding, impact, and cavitation effects. This process refines the particles or droplets within the material down to micron—or even sub-micron—levels, thereby creating a stable and homogeneous dispersion system.
<p>/</p>
<ol start="1">
<li>
<p>Ultra-Fine Grinding: Reduces particle size to 1-50 μm, some materials can reach below 0.1 μm.</p>
</li>
<li>
<p>Compact Structure: Vertical design, small footprint, easy installation.</p>
</li>
<li>
<p>High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, meeting sanitary standards.</p>
</li>
<li>
<p>Adjustable Gap: Rotor and stator gap adjustable (0.01-2 mm) to meet different fineness requirements.</p>
</li>
<li>
<p>Easy Operation: Simple operation for start-up, gap adjustment, and cleaning, no special training required.</p>
</li>
<li>
<p>Reliable Sealing: Double mechanical seal eliminates leakage, long service life.</p>
</li>
<li>
<p>Cooling System: Equipped with cooling water circulation system to prevent material overheating.</p>
</li>
<li>
<p>Circulation Grinding: Can be equipped with circulation piping for multiple passes to achieve ideal fineness.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Simple structure, easy disassembly and cleaning, low maintenance cost.</p>
</li>
<li>
<p>Multiple Models Available: JML-50, 80, 100, 120, 140 and other specifications to meet different production requirements.</p>
</li>
<li>
<p>Wide Application Range: Suitable for food, pharmaceutical, cosmetic, chemical and other industries.</p>
</li>
<li>
<p>Stable Operation: Dynamically balanced for low vibration and low noise.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Model</th>
<th>Capacity (kg/h)</th>
<th>Motor Power (kW)</th>
<th>Speed (rpm)</th>
<th>Tip Speed (m/s)</th>
<th>Gap Range (mm)</th>
<th>Dimensions (mm)</th>
<th>Weight (kg)</th>
</tr>
</thead>
<tbody>
<tr>
<td>JML-50</td>
<td>10-50</td>
<td>1.5</td>
<td>2900</td>
<td>7.6</td>
<td>0.01-2</td>
<td>400×300×700</td>
<td>80</td>
</tr>
<tr>
<td>JML-80</td>
<td>50-150</td>
<td>3.0</td>
<td>2900</td>
<td>12.1</td>
<td>0.01-2</td>
<td>500×400×800</td>
<td>120</td>
</tr>
<tr>
<td>JML-100</td>
<td>100-300</td>
<td>5.5</td>
<td>2900</td>
<td>15.2</td>
<td>0.01-2</td>
<td>600×500×900</td>
<td>180</td>
</tr>
<tr>
<td>JML-120</td>
<td>200-500</td>
<td>7.5</td>
<td>2900</td>
<td>18.2</td>
<td>0.01-2</td>
<td>700×600×1000</td>
<td>250</td>
</tr>
<tr>
<td>JML-140</td>
<td>300-1000</td>
<td>11.0</td>
<td>2900</td>
<td>21.2</td>
<td>0.01-2</td>
<td>800×700×1100</td>
<td>350</td>
</tr>
<tr>
<td>JML-180</td>
<td>500-1500</td>
<td>15.0</td>
<td>2900</td>
<td>27.3</td>
<td>0.01-2</td>
<td>900×800×1200</td>
<td>450</td>
</tr>
</tbody>
</table>
