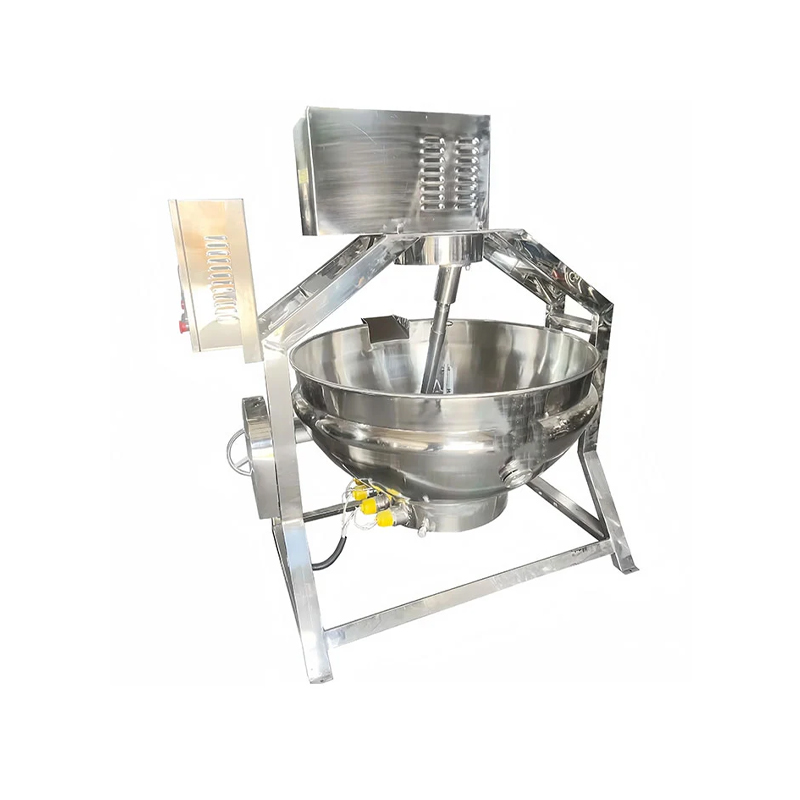

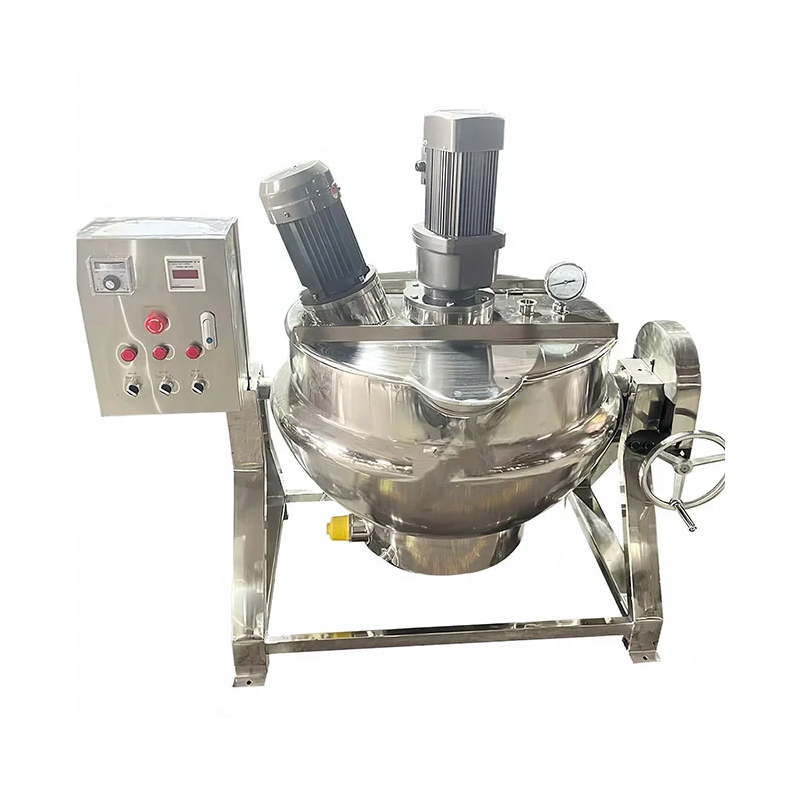

Electric Heating Jacketed Kettle
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
A jacketed kettle is a heating and cooling device widely utilized across the food processing, pharmaceutical, chemical, and catering industries. Its core structure consists of a double-layered vessel—comprising an inner liner and an outer shell—which creates an intermediate jacketed space. This space allows for the circulation of media such as steam, thermal oil, or cooling water, thereby enabling the uniform heating or cooling of the materials contained within the vessel. Characterized by its simple construction, uniform heating capabilities, and ease of operation, the jacketed kettle serves as an ideal choice for processes such as cooking, concentration, sterilization, and blending.
<p>/</p>
<ol start="1">
<li>
<p>High Heating Efficiency: Large-area jacketed heat exchange structure for uniform and rapid heating, preventing material from burning or sticking.</p>
</li>
<li>
<p>High-Quality Kettle Construction: Made of SUS304/SUS316L stainless steel, pressure-tested to ensure no leakage and no deformation.</p>
</li>
<li>
<p>Easy Operation: Fully automatic or semi-automatic control, one-touch setting for temperature and time, automatic operation, no need for dedicated supervision.</p>
</li>
<li>
<p>Precise Temperature Control: Equipped with high-precision temperature sensor for real-time monitoring and automatic adjustment of material temperature.</p>
</li>
<li>
<p>Multiple Heating Methods: Steam heating, electric heating (thermal oil), or gas heating available to meet different energy conditions.</p>
</li>
<li>
<p>Tilting Discharge (Optional): Hand wheel or electric tilting mechanism allows the kettle to tilt up to 90° for easy and complete discharge.</p>
</li>
<li>
<p>Agitator System (Optional): Anchor or scraper-type agitator prevents burning and improves heating uniformity.</p>
</li>
<li>
<p>Insulation Layer Design: Optional insulation layer on the outer shell reduces heat loss and saves energy.</p>
</li>
<li>
<p>Easy CIP Cleaning: Mirror-polished inner surface with dead-angle-free design, easy to clean and meets sanitary standards.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, small footprint, integrated factory assembly, ready for use after connecting to utilities on site.</p>
</li>
<li>
<p>Multiple Safety Protections: Safety valve, pressure controller, over-temperature alarm, and water shortage protection ensure operational safety.</p>
</li>
<li>
<p>Bottom Discharge (Optional): Bottom ball valve available for materials with good fluidity, enabling pipelined production.</p>
</li>
</ol>
<p> </p>
<table>
<thead>
<tr>
<th>Effective Volume (L)</th>
<th>Inner Diameter (mm)</th>
<th>Depth (mm)</th>
<th>Heat Exchange Area (m²)</th>
<th>Agitation Power (kW) (Optional)</th>
</tr>
</thead>
<tbody>
<tr>
<td>50</td>
<td>500</td>
<td>350</td>
<td>0.4</td>
<td>0.37</td>
</tr>
<tr>
<td>100</td>
<td>600</td>
<td>450</td>
<td>0.6</td>
<td>0.55</td>
</tr>
<tr>
<td>200</td>
<td>700</td>
<td>550</td>
<td>0.9</td>
<td>0.75</td>
</tr>
<tr>
<td>300</td>
<td>800</td>
<td>650</td>
<td>1.2</td>
<td>1.1</td>
</tr>
<tr>
<td>400</td>
<td>850</td>
<td>700</td>
<td>1.4</td>
<td>1.5</td>
</tr>
<tr>
<td>500</td>
<td>900</td>
<td>750</td>
<td>1.6</td>
<td>1.5</td>
</tr>
<tr>
<td>600</td>
<td>950</td>
<td>800</td>
<td>1.8</td>
<td>2.2</td>
</tr>
<tr>
<td>800</td>
<td>1000</td>
<td>900</td>
<td>2.2</td>
<td>2.2</td>
</tr>
<tr>
<td>1000</td>
<td>1100</td>
<td>1000</td>
<td>2.6</td>
<td>3.0</td>
</tr>
</tbody>
</table>
