A high-shear mixer is a highly efficient mixing device that utilizes a rotor-stator assembly to generate intense mechanical and hydraulic shear forces. It is widely employed across various fields, including pharmaceuticals, food processing, cosmetics, chemical manufacturing, and bioengineering. This equipment is capable of rapidly refining, dispersing, emulsifying, and homogenizing materials, effectively blending immiscible liquid phases (such as oil and water) or solid-liquid mixtures to produce stable, uniform blends. Distinguished by its high efficiency, rapid processing speed, and ability to achieve fine particle sizes, the high-shear mixer has become an indispensable core component in modern production lines.

High Mixing Efficiency: Rotor-stator structure generates intense shear force, fast processing speed, high mixing uniformity.
Fine Particle Size: Reduces droplets or particles to 1-10 microns, some models can achieve nano-scale (<0.5 microns).
High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, mirror-polished inner surface, meeting sanitary standards.
Easy Operation: Fully automatic PLC control, one-touch setting for speed and time, VFD speed control, no need for dedicated supervision.
Multiple Workhead Options: Different tooth shapes and gaps available to suit different material characteristics.
Reliable Sealing: Double mechanical seal eliminates leakage, suitable for vacuum, pressure, and flammable/explosive conditions.
Temperature Control Design: Jacket design allows cooling water or heating medium circulation to control material temperature.
Easy CIP Cleaning: Removable workhead, dead-angle-free inner surface, optional CIP spray ball available.
Simple Installation and Maintenance: Compact structure, fixed or mobile design available, easy maintenance.
Multiple Safety Protections: Motor overload protection, temperature protection, and seal leak detection ensure safe operation.
Multiple Models Available: Laboratory type, batch type, in-line type, and emulsifying tank type to meet different production scale requirements.
Wide Application Range: Suitable for pharmaceutical, food, cosmetic, chemical, bioengineering and other industries.

Model No.	Motor Power	Motor Speed(r/min)	Capacity(L)	D	D1	P	L	M
WRL-90	1.5	2900	10-50	80	140	200	355	165
WRL-100	2.2	2900	50~100	88	145	200	650	165
WRL-120	4	2900	100~300	120	180	250	750	215
WRL-140	7.5	2900	300~800	140	210	300	900	265
WRL-160	11	2900	500~1500	160	230	350	1050	300
WRL-180	18.5	2900	600~2000	180	260	350	1200	300
WRL-200	22	1450-1500	800~2500	200	270	350	1200	3000
WRL-220	30	1450-1500	1000~3500	240	320	400	1355	350
WRL-240	37	1450-1500	1500~5000	260	340	400	1395	350

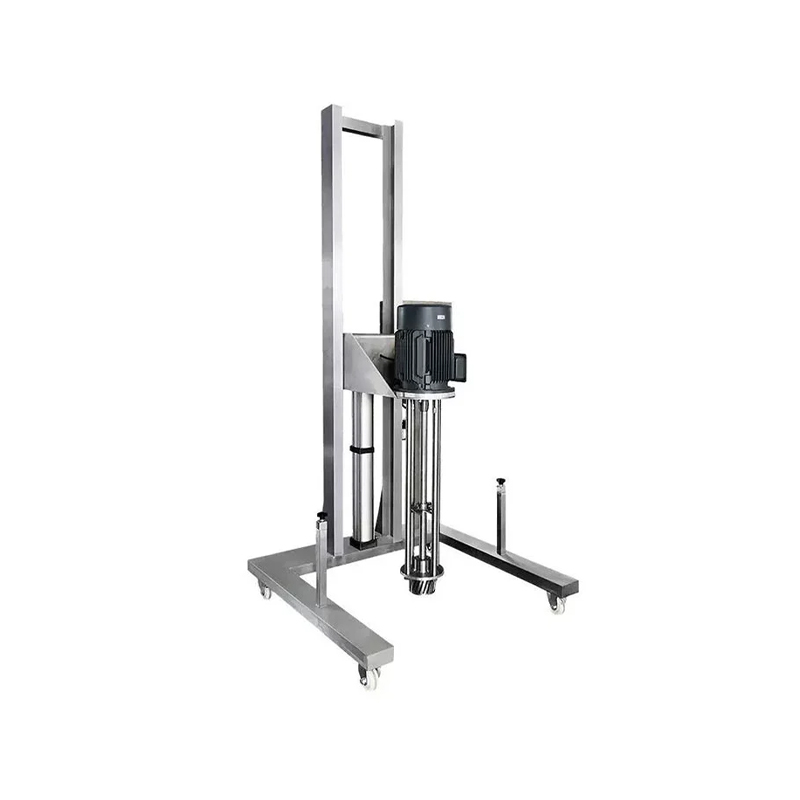

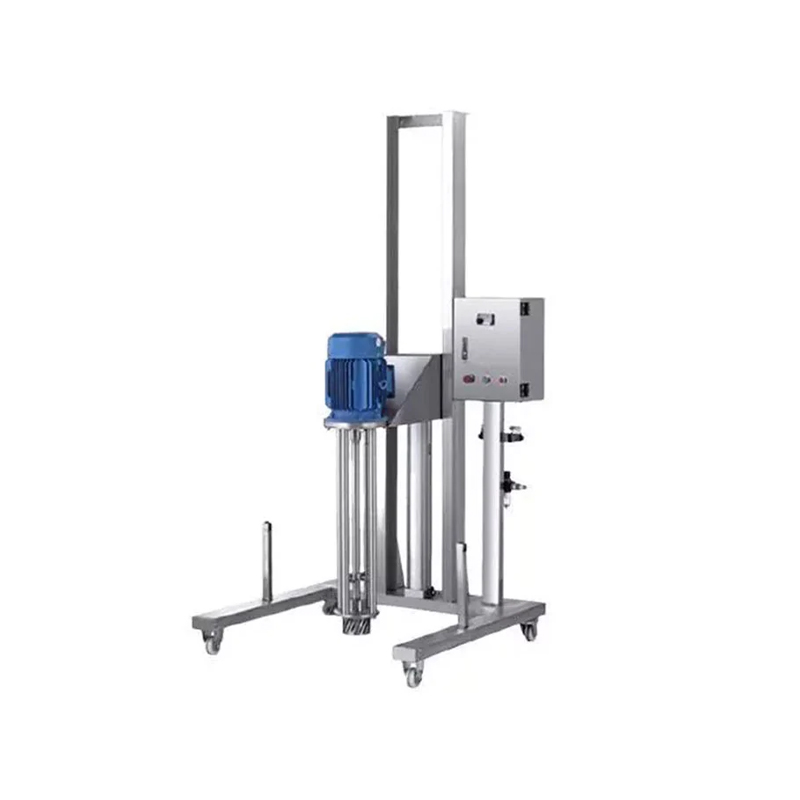

Pneumatic Lift Mixer
