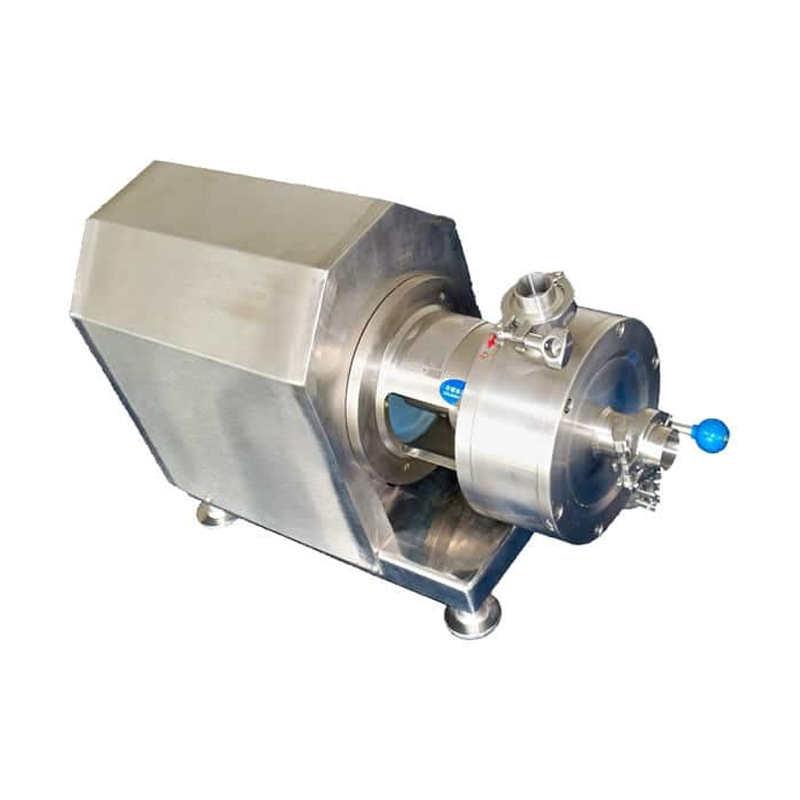

Inline Homogenizer
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
A high-shear mixer is a highly efficient mixing device that utilizes a rotor-stator assembly to generate intense mechanical and hydraulic shear forces. It is widely employed across various fields, including pharmaceuticals, food processing, cosmetics, chemical manufacturing, and bioengineering. This equipment is capable of rapidly refining, dispersing, emulsifying, and homogenizing materials, effectively blending immiscible liquid phases (such as oil and water) or solid-liquid mixtures to produce stable, uniform blends. Distinguished by its high efficiency, rapid processing speed, and ability to achieve fine particle sizes, the high-shear mixer has become an indispensable core component in modern production lines.
<p>/</p>
<ol start="1">
<li>
<p>High Mixing Efficiency: Rotor-stator structure generates intense shear force, fast processing speed, high mixing uniformity.</p>
</li>
<li>
<p>Fine Particle Size: Reduces droplets or particles to 1-10 microns, some models can achieve nano-scale (<0.5 microns).</p>
</li>
<li>
<p>High-Quality Material Construction: Product contact parts made of SUS304/SUS316L stainless steel, mirror-polished inner surface, meeting sanitary standards.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, one-touch setting for speed and time, VFD speed control, no need for dedicated supervision.</p>
</li>
<li>
<p>Multiple Workhead Options: Different tooth shapes and gaps available to suit different material characteristics.</p>
</li>
<li>
<p>Reliable Sealing: Double mechanical seal eliminates leakage, suitable for vacuum, pressure, and flammable/explosive conditions.</p>
</li>
<li>
<p>Temperature Control Design: Jacket design allows cooling water or heating medium circulation to control material temperature.</p>
</li>
<li>
<p>Easy CIP Cleaning: Removable workhead, dead-angle-free inner surface, optional CIP spray ball available.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, fixed or mobile design available, easy maintenance.</p>
</li>
<li>
<p>Multiple Safety Protections: Motor overload protection, temperature protection, and seal leak detection ensure safe operation.</p>
</li>
<li>
<p>Multiple Models Available: Laboratory type, batch type, in-line type, and emulsifying tank type to meet different production scale requirements.</p>
</li>
<li>
<p>Wide Application Range: Suitable for pharmaceutical, food, cosmetic, chemical, bioengineering and other industries.</p>
</li>
</ol>
<table border="1" cellpadding="1" cellspacing="1">
<tbody>
<tr>
<td>Model No.</td>
<td>Motor Power</td>
<td>Motor Speed(r/min)</td>
<td>Capacity(L)</td>
<td>D</td>
<td>D1</td>
<td>P</td>
<td>L</td>
<td>M</td>
</tr>
<tr>
<td>WRL-90</td>
<td>1.5</td>
<td>2900</td>
<td>10-50</td>
<td>80</td>
<td>140</td>
<td>200</td>
<td>355</td>
<td>165</td>
</tr>
<tr>
<td>WRL-100</td>
<td>2.2</td>
<td>2900</td>
<td>50~100</td>
<td>88</td>
<td>145</td>
<td>200</td>
<td>650</td>
<td>165</td>
</tr>
<tr>
<td>WRL-120</td>
<td>4</td>
<td>2900</td>
<td>100~300</td>
<td>120</td>
<td>180</td>
<td>250</td>
<td>750</td>
<td>215</td>
</tr>
<tr>
<td>WRL-140</td>
<td>7.5</td>
<td>2900</td>
<td>300~800</td>
<td>140</td>
<td>210</td>
<td>300</td>
<td>900</td>
<td>265</td>
</tr>
<tr>
<td>WRL-160</td>
<td>11</td>
<td>2900</td>
<td>500~1500</td>
<td>160</td>
<td>230</td>
<td>350</td>
<td>1050</td>
<td>300</td>
</tr>
<tr>
<td>WRL-180</td>
<td>18.5</td>
<td>2900</td>
<td>600~2000</td>
<td>180</td>
<td>260</td>
<td>350</td>
<td>1200</td>
<td>300</td>
</tr>
<tr>
<td>WRL-200</td>
<td>22</td>
<td>1450-1500</td>
<td>800~2500</td>
<td>200</td>
<td>270</td>
<td>350</td>
<td>1200</td>
<td>3000</td>
</tr>
<tr>
<td>WRL-220</td>
<td>30</td>
<td>1450-1500</td>
<td>1000~3500</td>
<td>240</td>
<td>320</td>
<td>400</td>
<td>1355</td>
<td>350</td>
</tr>
<tr>
<td>WRL-240</td>
<td>37</td>
<td>1450-1500</td>
<td>1500~5000</td>
<td>260</td>
<td>340</td>
<td>400</td>
<td>1395</td>
<td>350</td>
</tr>
</tbody>
</table>
<p><img alt="" src="/uploads/2604/fhsifhsifnsi.jpg" /></p>
