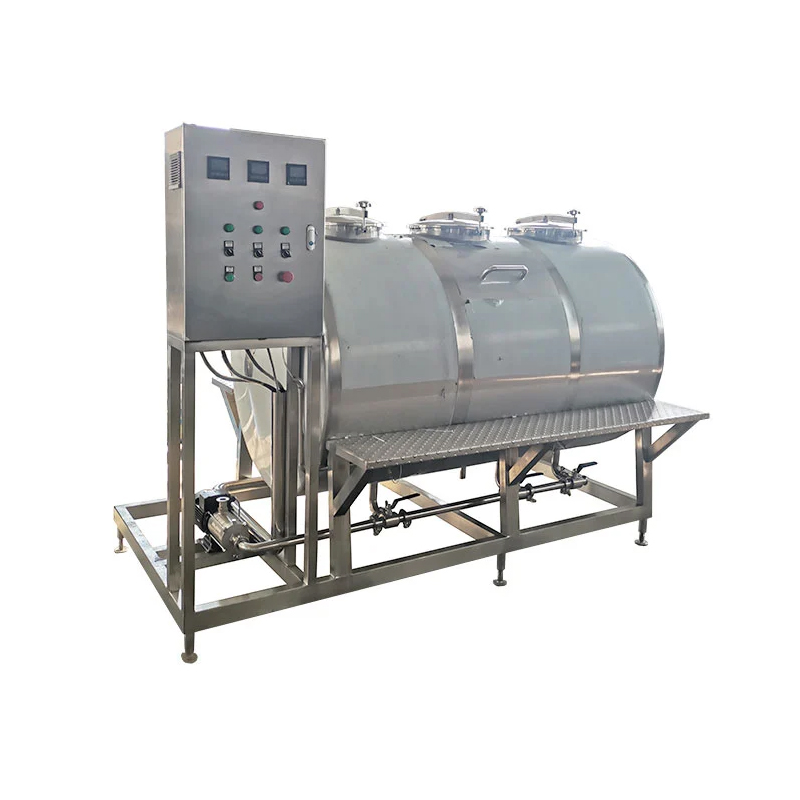

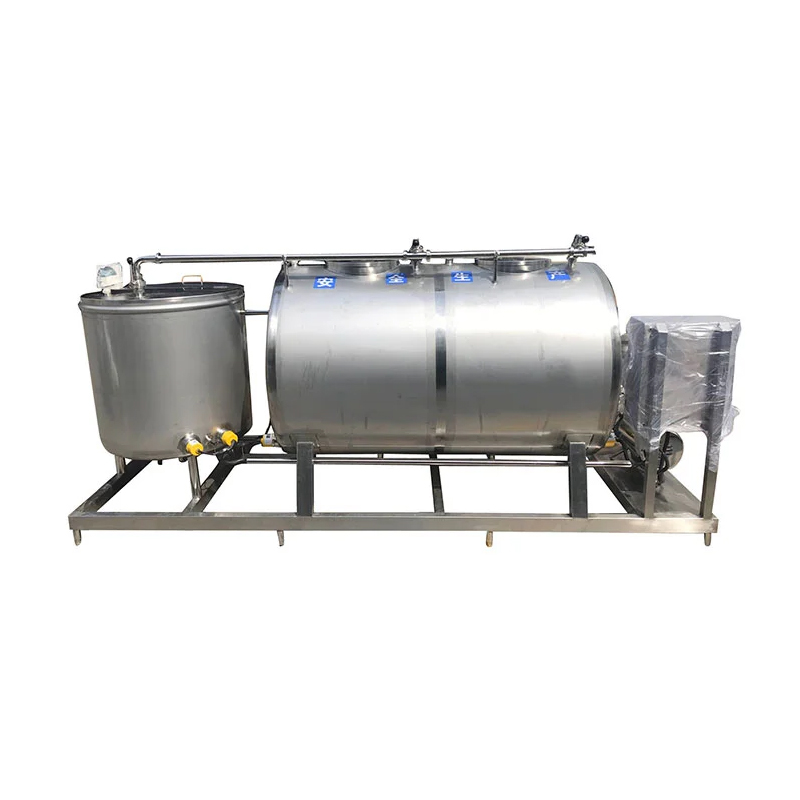

Horizontal CIP Cleaning Tank
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
CIP cleaning system is an integrated system that can automatically clean process equipment such as tanks, pipes, valves, and pumps without disassembling the equipment. It is widely utilized across industries including food and beverages, pharmaceuticals, bioengineering, dairy products, brewing, cosmetics, and chemicals, ensuring that production equipment meets hygiene standards, preventing cross-contamination, and enhancing cleaning efficiency and repeatability.
/
-
High Cleaning Efficiency: 360° no-dead-angle spray coverage, thorough residue removal with excellent cleaning results.
-
High-Quality Material Construction: Piping and tanks made of SUS304/SUS316L stainless steel, mirror-polished inner surface, meeting sanitary standards.
-
Easy Operation: Fully automatic PLC control, one-touch recall of cleaning programs, no manual intervention, no need for dedicated supervision.
-
Precise Temperature Control: Equipped with steam or electric heating system, automatic control of cleaning solution temperature for improved cleaning effectiveness.
-
Automatic Concentration Control: Conductivity meter continuously monitors cleaning solution concentration, automatically replenishes concentrate to ensure stable cleaning results.
-
Recycling Use: Cleaning solution can be recycled and reused, reducing water and chemical consumption, saving operating costs.
-
Multiple Cleaning Programs: Preset programs including standard wash, intensive wash, and sanitizing wash to meet different cleaning requirements.
-
Data Recording: Automatically records cleaning time, temperature, concentration, flow rate and other parameters, supports report printing and data export.
-
Simple Installation and Maintenance: Compact structure, modular design, integrated factory assembly, ready for use after connecting to utilities on site.
-
Multiple Safety Protections: Level protection, temperature protection, pressure protection, pump overload protection, and leakage protection ensure safe operation.
-
Modular Configuration: Single-tank, two-tank, or three-tank options available, flexible combination according to process requirements.
-
Optional Mobile Design: Integrated design with casters, can be moved to different equipment for cleaning, flexible and convenient.
| Model | Tank Volume (L) | Tank Diameter (mm) | Tank Height (mm) | Pump Power (kW) | Pump Flow Rate (m³/h) | Pump Head (m) |
|---|---|---|---|---|---|---|
| CIP-S-100 | 100 | 500 | 600 | 2.2 | 5 | 30 |
| CIP-S-200 | 200 | 600 | 750 | 3.0 | 8 | 35 |
| CIP-S-300 | 300 | 700 | 850 | 4.0 | 10 | 35 |
| CIP-S-500 | 500 | 800 | 1000 | 5.5 | 15 | 40 |
| CIP-S-800 | 800 | 900 | 1200 | 7.5 | 20 | 40 |
| CIP-S-1000 | 1000 | 1000 | 1300 | 11.0 | 25 | 45 |
| CIP-S-1500 | 1500 | 1100 | 1500 | 15.0 | 30 | 45 |
| CIP-S-2000 | 2000 | 1200 | 1700 | 18.5 | 40 | 50 |
| CIP-S-3000 | 3000 | 1400 | 1900 | 22.0 | 50 | 50 |
| CIP-S-5000 | 5000 | 1600 | 2200 | 30.0 | 65 | 55 |
